products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Car Air Filter
Created with Pixso.

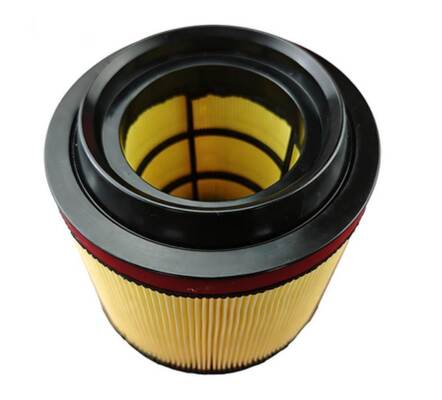

175*165mm Ford Engine Air Filter 2.3L 2.7L FA-2022 FA2022 MB3Z-9601-A

175*165mm Ford Engine Air Filter 2.3L 2.7L FA-2022 FA2022 MB3Z-9601-A

Brand Name: Yuanzhuang
Model Number: YA-13163U
MOQ: 200 PCS
Price: 2.0-3.0 USD
Payment Terms: TT
Supply Ability: 6000 pcs / day
Detail Information
Place of Origin:
Guangzhou China
Certification:
IATF16949 2016
Material:
High-efficiency Filter Paper
Part Number:
FRAM : CA12878 CHAMP / LUBER-FINER : AF6022
Dimension(l*w*h):
175*165 Mm 150±2 Folds
Rated Flow Rate:
300 M ³/h
Original Filtration Efficiency:
≥98%
Lifetime Filtration Efficiency:
≥99%
Dust Holding Capacity:
≥150g
Original Resistance:
≤0.5 KPa
Terminate Resistance:
≤2.0kPa
Test Methods For Automotive Air Filters:
QC T970-2014
Filter Type:
A2 Ash
Comprehensive Evaluation:
Qualified
Color:
Back Or Customized
Packaging:
Customized
Packaging Details:
Neutral or Customized
Supply Ability:
6000 pcs / day
Highlight:

175*165mm Ford Engine Air Filter

,

Ford Engine Air Filter MB3Z-9601-A

,

FA2022 car Engine Air Filter

Product Description

   Manufacturer Ford Engine Air Filter 2.3L 2.7L FA-2022 FA2022 MB3Z-9601-A

Product Name:

 FRAM : CA12878 CHAMP / LUBER-FINER : AF6022

Rated flow rate  300m3/h
Original intake resistance ≤3.5 Kpa  2.39 KPa     Qualified
Original filtration efficiency ≥97.5%  ≥99%  Qualified
Lifetime filtration efficiency ≥99%  ≥99% Qualified
Ash storage capacity   ≥140g

 ≥144.8 g    Qualified

Tightness  No leakage of dust
warranty   two years
Size   175*165 mm 150±2 folds
Material  High-efficiency Filter Paper



Our Service:

  1. OEM Manufacturing Services Offered We provide full-range OEM customization, covering both products (e.g., material grade selection, technical parameter adjustment, performance optimization) and packaging (e.g., brand logo printing, shockproof protective packaging solutions) to match your specific business needs.
  2. Standard Part Samples for Pre-Production Verification Samples of standard parts are available upon request, mainly for pre-production quality checks and equipment compatibility testing—helping you confirm product suitability before formal order placement.
  3. 24-Hour Inquiry Response Commitment We will respond to your inquiries within 24 working hours (excluding major international holidays) to ensure timely communication and avoid delays in your workflow.
  4. Order Tracking & Post-Delivery Support After your order is shipped, we will share logistics updates with you every two days until you receive the goods. Once you get the products, please test them and provide feedback; if you encounter any issues, contact us directly, and we will offer targeted solutions within 1 working day.

    175*165mm Ford Engine Air Filter 2.3L 2.7L FA-2022 FA2022 MB3Z-9601-A 0

Quality Control



Guangzhou Yuanzhuang Filter Co., Ltd. identifies quality assurance as a non-negotiable cornerstone of its operations in the R&D, engineering, and production of filters for automotive, construction, and agricultural machinery. We recognize that the filtration precision and long-term reliability of these filters are pivotal to sustaining the equipment’s peak operational efficiency and extending its service lifespan. Backed by 56 invention patents—with the count expanding year by year—and 8 industry-recognized certifications, the company also launches new product lines annually to address emerging market needs and customer demands; consequently, we have built and continuously refined a full-lifecycle, rigorously enforced quality management system that fully meets the rigorous standards of the IATF 16949 quality management system.

175*165mm Ford Engine Air Filter 2.3L 2.7L FA-2022 FA2022 MB3Z-9601-A 1

175*165mm Ford Engine Air Filter 2.3L 2.7L FA-2022 FA2022 MB3Z-9601-A 2

175*165mm Ford Engine Air Filter 2.3L 2.7L FA-2022 FA2022 MB3Z-9601-A 3



Our  Promise:

     We have always earned our customers’ trust through consistent, reliable quality. More and more overseas clients are placing their confidence in us. Your trust will be the core driving force for our continuous progress. We sincerely invite all customers to share your valuable, actionable opinions and suggestions with us. Let us work together to achieve mutual growth!

175*165mm Ford Engine Air Filter 2.3L 2.7L FA-2022 FA2022 MB3Z-9601-A 4

175*165mm Ford Engine Air Filter 2.3L 2.7L FA-2022 FA2022 MB3Z-9601-A 5

175*165mm Ford Engine Air Filter 2.3L 2.7L FA-2022 FA2022 MB3Z-9601-A 6

Fitment Notes:

  • Alternate Part Number: MB3Z9601A, Motorcraft Part Number: FA-2022, FA2022
  • Bronco - Fits 2.3L & 2.7L Engine
  • Ranger - Fits 2.7L & 2.3L EcoBoost Engine
